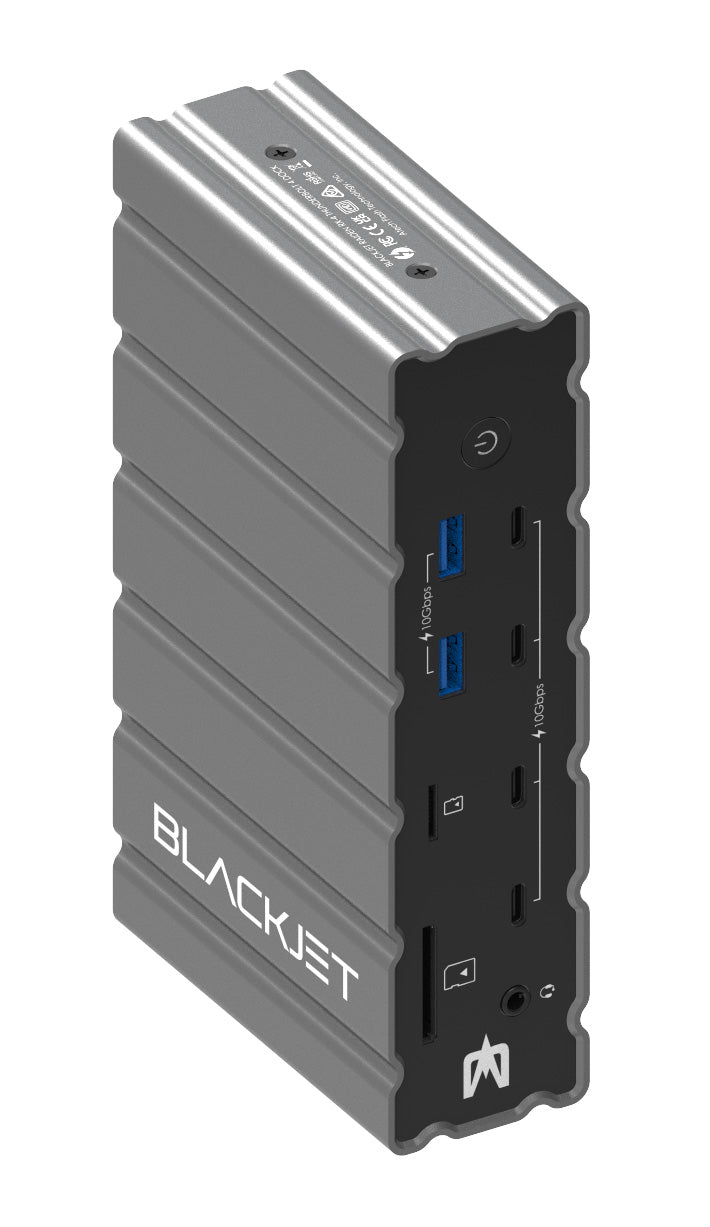

BLACKJET RX-4 RAIDEN Thunderbolt 4 Docking Station
BLACKJET RX-4 RAIDEN Thunderbolt 4 Docking Station
Couldn't load pickup availability
The Blackjet® RX-4 Raiden Thunderbolt 4 Docking Station has 17 ports to boost your connectivity.
The RX-4 is a docking station that utilizes the large bandwidth 40Gbps of Thunderbolt™ 4, which allows you to expand the connectivity options of your computer by providing 17 ports for various devices. It connects to your computer via a single Thunderbolt 4 cable and offers a variety of ports, including four USB-C 3.2 Gen 2 ports, three USB-A 3.2 Gen 2 ports, two Thunderbolt 4 ports, a 2.5Gbe Ethernet port, an HDMI 2.1 port, and a DisplayPort 1.4.
The dock also includes a 3.5mm audio jack for headphones or speakers and a SD and microSD card reader for convenient access to your camera's memory cards. Additionally, the dock provides up to 60 watts of power delivery to charge your laptop while you work.
One of the standout features of the RX-4 Raiden dock is its ability to be used in many configurations. You can use it horizontally or vertically depending on your workspace. Additionally, you can rack mount the RX-4 to a 1U rack mount system (with rack mount tray sold separately). It's also built with aluminum construction for durability and heat dissipation and includes a built-in Kensington security slot to protect and secure your dock.
RX-4 will now support Thunderbolt™ Share, which provides similar functionality to that of a KVM switch, allowing users to connect two Thunderbolt-equipped computers through a Thunderbolt dock. This innovative software solution enhances the way we interact with our PCs by facilitating the sharing of keyboard, screen, storage, and files between two Windows-based PCs at the speed of Thunderbolt™ technology.
Learn more about Thunderbolt Share: https://blackjetusa.com/pages/thunderbolt-share
FEATURES

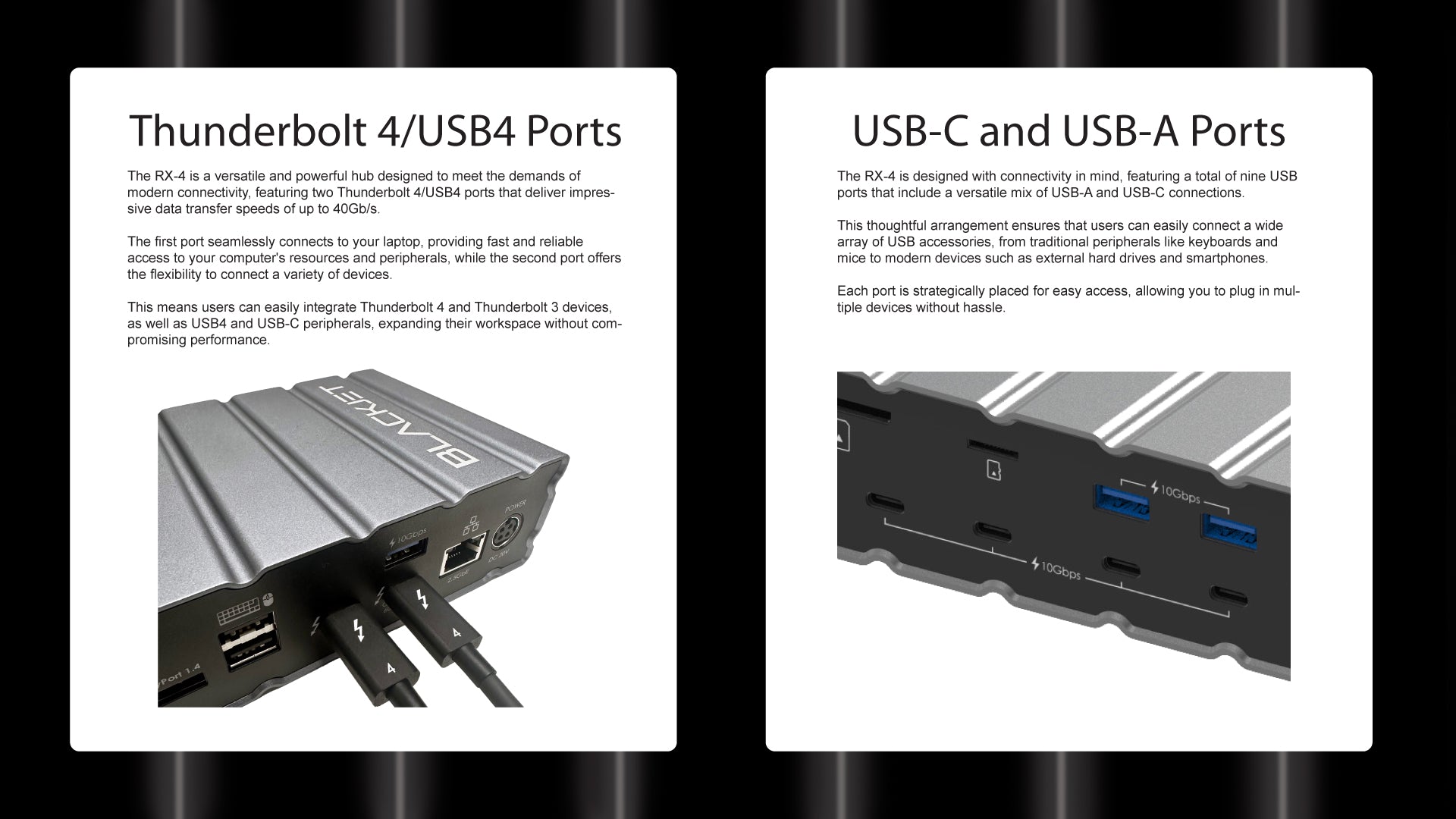

- Two Thunderbolt 4 ports (one upstream and one downstream)
- Four USB-C 3.2 Gen 2 Ports
- Three USB-A 3.2 Gen 2 Ports
- Two USB-A Ports for Keyboard and Mouse connection
- SD UHS-II Media Reader up to 300 MB/s
- microSD UHS-II Media Reader up to 250 MB/s
- Audio In/Out combo jack
- 2.5Gbe Ethernet Port for networking
- Kensington Lock supported for security
- Provides up to 60W of charging for laptop
- HDMI 2.1 support 8K@30Hz (Max)
- DisplayPort 1.4 support 8K@30Hz (Max)
- Thunderbolt Share licensed
- Optional 1U Rack Mount Tray RMT-1U (Sold separately)
SPECIFICATIONS
Dimensions (W x H x D):
170mm x 98mm x 43mm
Power Requirements:
AC Power 160W
Transfer rate:
Up to 40Gb/Sec via Thunderbolt 4
System Requirement:
Thunderbolt 3 Port on Computer
Thunderbolt 4 Port on Computer
USB4 Port on Computer
M series iPad Pro
OS System Requirements:
macOS 11.1 (Big Sur) and higher
Windows 10, 11
Manufacturing Information:
Made in Taiwan
TAA Compliant
Package Contents:
RX-4 Raiden Docking Station
Thunderbolt 4 Cable
Power Supply
Mounting Kit
User's Guide
2-year limited manufacturer warranty
Blackjet® is a registered trademark of Atech Flash Technology, Inc.
Displays Notes:
