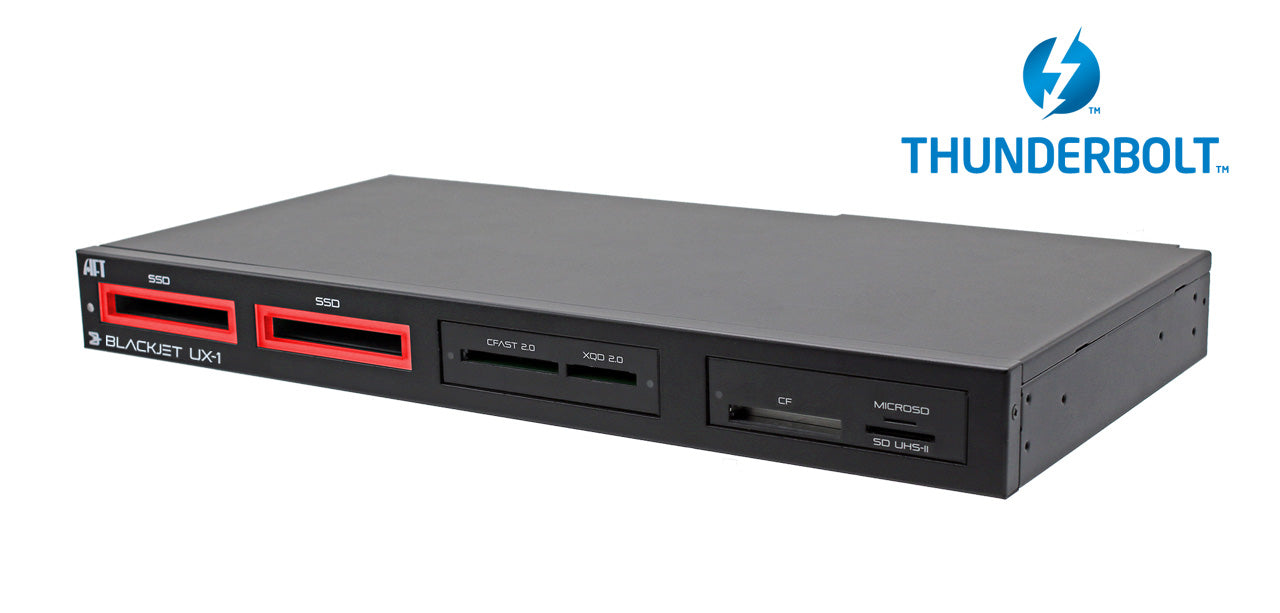

BLACKJET UX-1 Professional Workflow Thunderbolt 3 Cinema Dock

BLACKJET UX-1 Professional Workflow Thunderbolt 3 Cinema Dock

Regular price $499.99 USD
Regular price Sale price $499.99 USD
Sale Out of stock

New rackmountable TX-2DS Docking system is the new replacement model for UX-1

Blackjet UX-1 utilizes the large bandwidth of Thunderbolt™ 3, which allows you to ingest, edit and archive your creative content simultaneously from all six media formats at their maximum speeds.  Blackjet UX-1 is compatible with existing Mac® and Windows® Thunderbolt 3 computers, but it is also compatible with Mac® Thunderbolt 2 computers when used with the Apple® Thunderbolt 3 to Thunderbolt 2 adapter.

FEATURES

  • Dual Thunderbolt™ 3 Connections with speeds of up to 40Gb/s

  • 2nd Thunderbolt 3 port supports Daisy Chaining of five additional
    Thunderbolt devices, a 5K display, or one USB device

  • Dual SSD can be RAID 0, RAID 1, JBOD (Software RAID)

  • CFast 2.0, XQD 2.0, CF, SDXC and microSD media cards supported

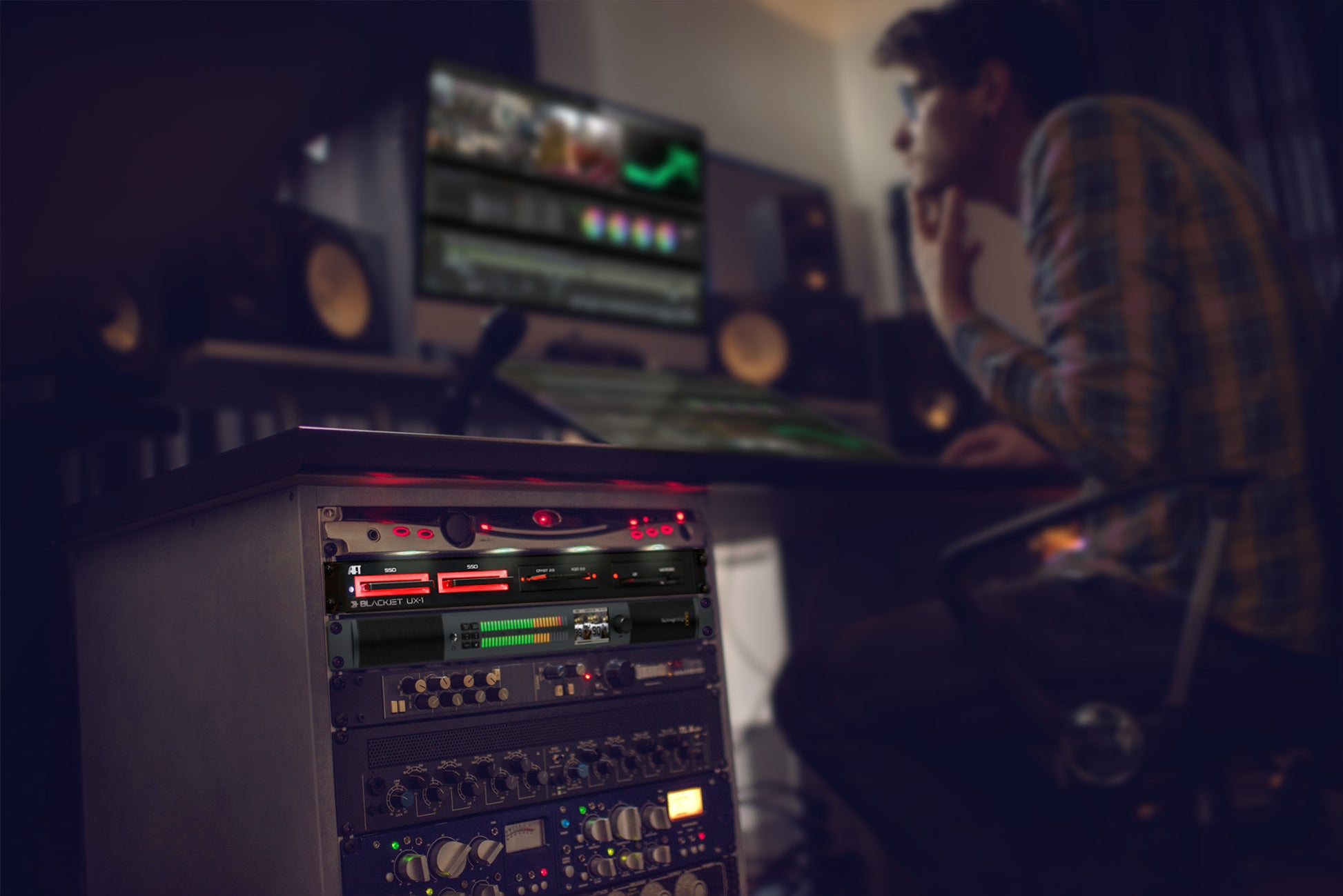

  • Rackmountable for 1U specifications

  • Compatible with Thunderbolt 2 with Thunderbolt 3 adapter

  • Optional Reader Modules available (Sold Separately)

  • D-Tap Cable (Sold Separately)



    SPECIFICATIONS

    Dimensions (W x H x D):
    425mm x 212mm x 44mm


    Power Requirements:
    AC Power
    Optional:  D-Tap Cable to Power Pack
    (D-Tap Cable sold separately)

    Transfer rate:
    Up to 40Gb/Sec via Thunderbolt 3

    System Requirement:
    Thunderbolt 3 Port on Computer
    Thunderbolt 4 Port on Computer

    OS System Requirements:
    macOS 10.12 (Sierra ) and higher
    Windows 10, 11

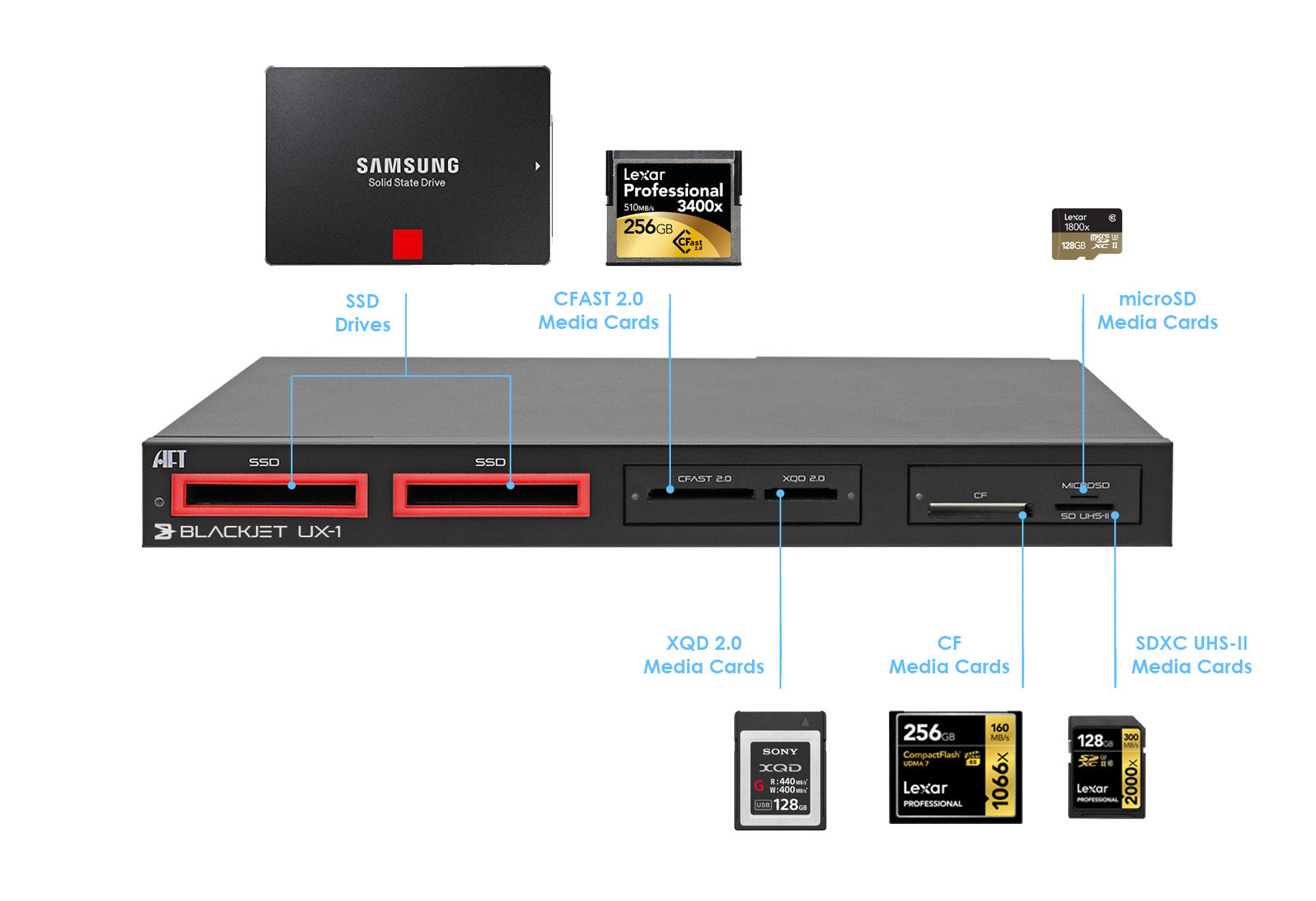

    Supported Media Cards:
    SSD
    CFast 2.0
    Sony XQD™ 2.0
    CompactFlash™ UDMA
    Secure Digital eXtended Capacity (SDXC UHS-I/II)
    micro Secure Digital (microSD)


    Manufacturing Information:
    Made in Taiwan
    TAA Compliant

    Package Contents:
    Blackjet UX-1
    Thunderbolt 3 Cable
    Power Supply
    User's Guide

    2-year limited manufacturer warranty​

    Blackjet™ is a trademark of Atech Flash Technology, Inc.
