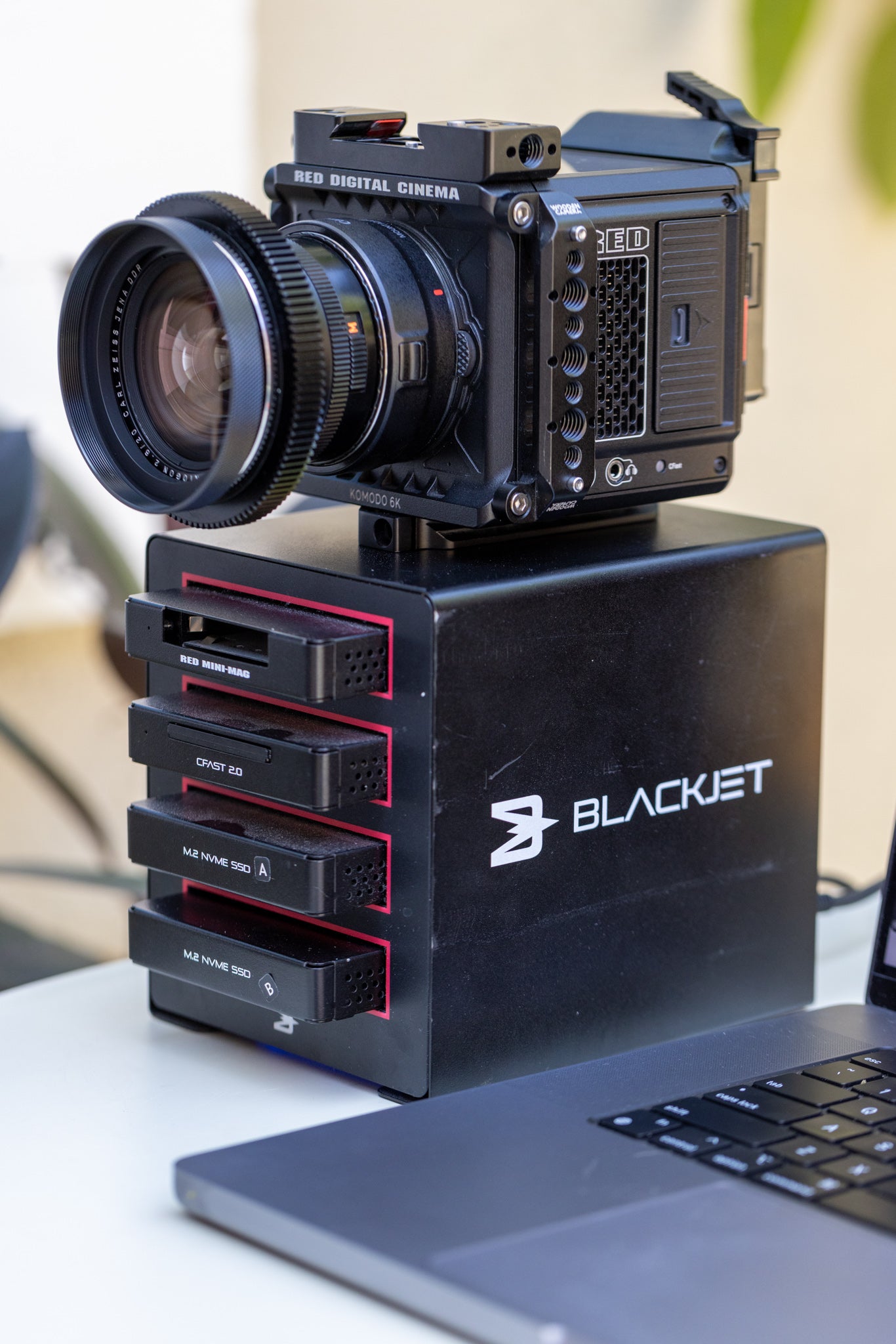

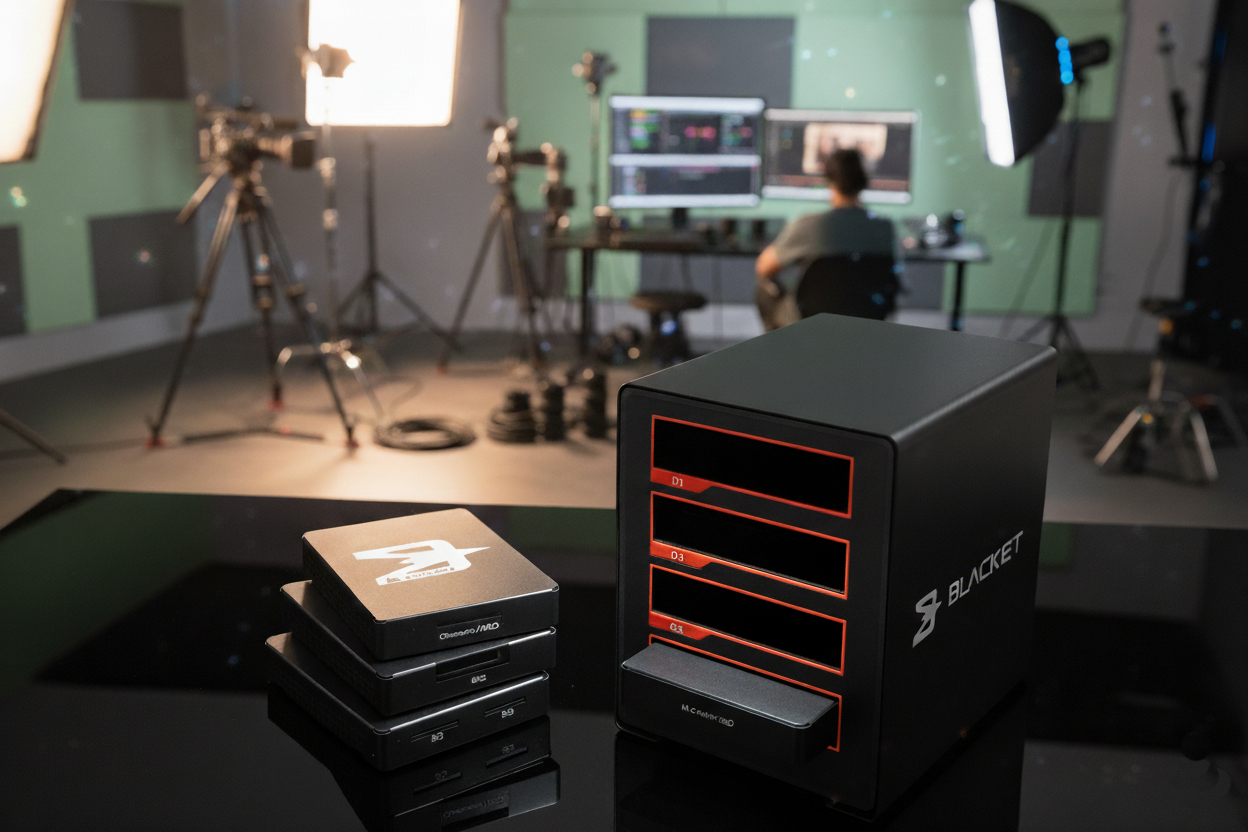

BLACKJET TX-4DS 4-Bay Thunderbolt 3 Docking System

The Blackjet® TX-4DS is powered by Thunderbolt™ 3 technology, delivering up to 40Gbps bandwidth and speeds of up to 2,750 MB/s. Designed for demanding creative workflows, it enables simultaneous ingest, editing, and archiving of media at maximum performance. Its modular design allows users to customize their setup based on the media they use, creating a flexible and efficient workflow solution.

• 4-Bay Docking allows you to customize your Workflow
• Two DX-1M M2. NVMe Enclosures are included (memory not included)
• Memory Modules can be RAID 0, RAID 1, JBOD (Software RAID)
• Media Reader Modules supports most Pro Media Cards (sold separately)
• Dual Thunderbolt™ 3 Connections with speeds of up to 40Gb/s
• 2nd Thunderbolt 3 port supports Daisy Chaining of additional
• Thunderbolt devices, a 5K display, or one USB device
• Thunderbolt 4 and USB 4.0 supported
• Built-in Silent Fan to help dissipate heat and increase cooling
• D-Tap Cable (sold separately)

Dimensions (W x H x D):
120mm x 145mm x 155mm

Power Requirements:
AC Power
Optional:  D-Tap Cable to Power Pack
(D-Tap Cable sold separately)

Transfer rate:
Up to 40Gb/Sec via Thunderbolt 3

System Requirement:
Thunderbolt 3 Port on Computer
Thunderbolt 4 Port on Computer
USB4 Port on Computer
M series iPad Pro

OS System Requirements:
macOS 10.12 (Sierra ) and higher
Windows 10, 11

Supported Media Cards:
M.2 NVME SSD*
2.5" SSD
CFast 2.0
CFexpress Type A
CFexpress Type B
Sony XQD™
Sony SxS
RED MINI-MAG
Secure Digital eXtended Capacity (SDXC UHS-I/II)
Atomos Master Caddy 2
Sony SSDmini

Manufacturing Information:
Made in Taiwan
TAA Compliant

Package Contents:
Blackjet TX-4DS
Blackjet DX-1M NVMe Module x 2 (memory not included)
Thunderbolt 3 Cable
Power Supply
User's Guide

2-year limited manufacturer warranty

*Operating System:
macOS High Sierra 10.13.6 +

Blackjet® is a registered trademark of Atech Flash Technology, Inc.
